Starminer 92 PWM Ultra-Thin Fan

Name: Starminer 92 PWM Ultra-Thin Fan
Brand: Star Miner
Price: 4.00 USD
Availability: InStock

$4.00 USD

Promoção Esgotado

Shipping US$50

Ships within 48 hours180-Day WarrantySecure PaymentDelivery in 7–12 days

Ver informações completas

PRODUCT DESCRIPTION

Spec Sheet | Starminer 92 PWM Ultra-Thin Fan

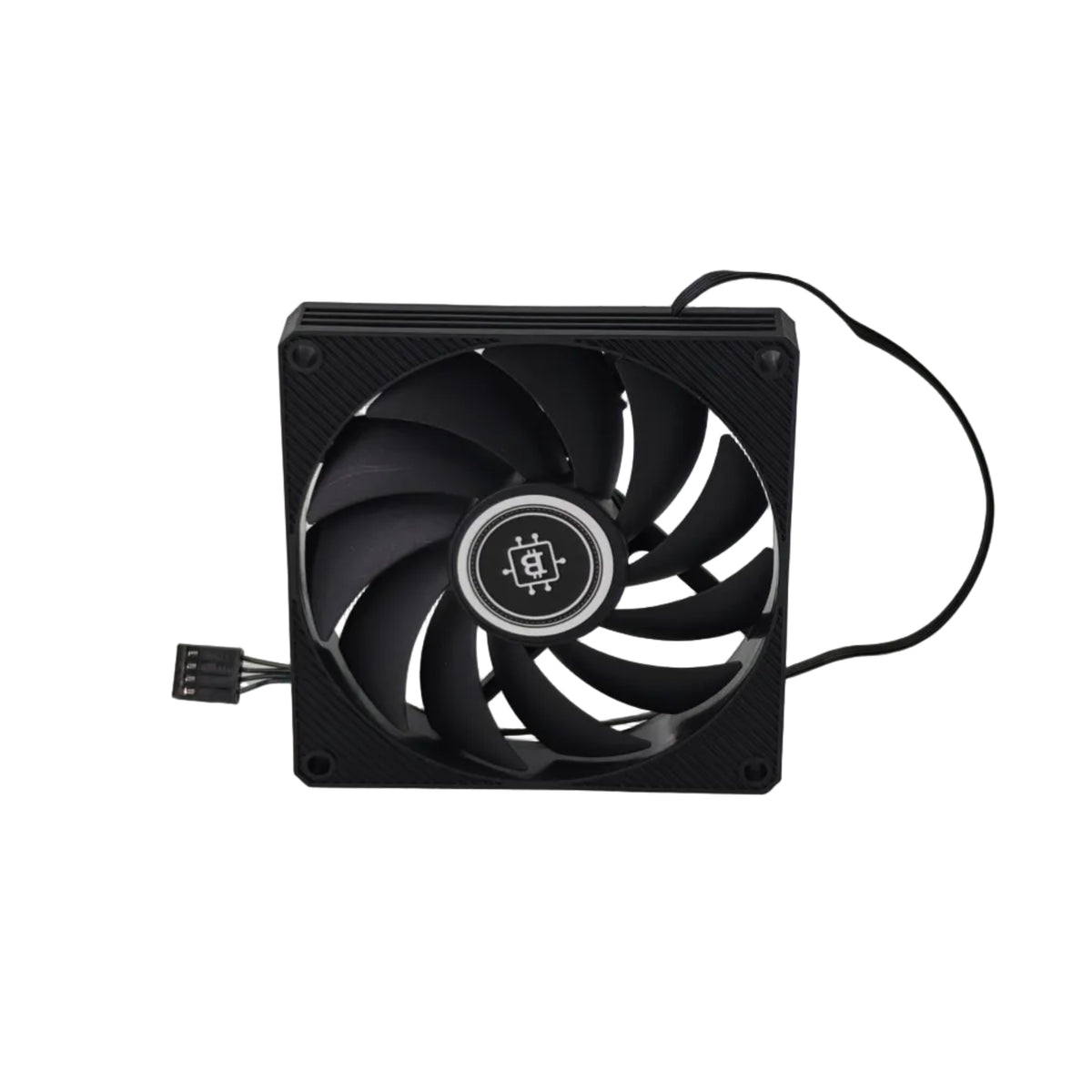

Product Name: starminer 92 PWM Ultra-Thin Fan (92 × 92 × 15 mm, 4-pin speed control, replacement core cooling fan / bracket auxiliary fan) Note: The values below are typical reference figures for this category. Please fine-tune them against the actual unit's rated nameplate / measured values.

Fan Specifications

Item	Parameter
Fan Size	92 × 92 × 15 mm (ultra-thin)
Rated Voltage	12V DC
Control Mode	4-pin PWM intelligent speed control
Speed	500 – 3000 RPM ±10%
Max Airflow	approx. 33 CFM
Max Static Pressure	approx. 1.8 mmH₂O
Rated Current	approx. 0.18A
Rated Power	approx. 2.2W
Noise	≤ 29 dBA (full load)
Bearing Type	Hydraulic bearing
Expected Lifespan	≥ 40,000 hours
Lead Length	approx. 200 mm
Blade Material	Reinforced PBT plastic, 9 blades
Frame Material	Flame-retardant PC + fiberglass

Mounting Specifications

Item	Parameter
Screw Hole Spacing	approx. 82.5 × 82.5 mm (standard 92 mm fan hole pattern)
Mounting Method	Self-tapping screws at the four corners (included)
Fan Weight	approx. 90 g
Operating Temperature	-10°C to 70°C

Use Cases

Use Case	Description
Core heatsink fan replacement	Directly replaces the original 9.2 cm fan at the machine's core cooling position
Bracket auxiliary cooling fan	Installed at the bracket/chassis airflow position to supply auxiliary airflow for the whole unit

Compatible Models

Device	Description
NerdOctaxe 9.6T	Core fan replacement / bracket auxiliary fan
NerdQaxe++ 4.8T	Core fan replacement / bracket auxiliary fan
NerdOctaxe Rev3.1 12T	Core fan replacement / bracket auxiliary fan
NerdQaxe++ 6T	Core fan replacement / bracket auxiliary fan
